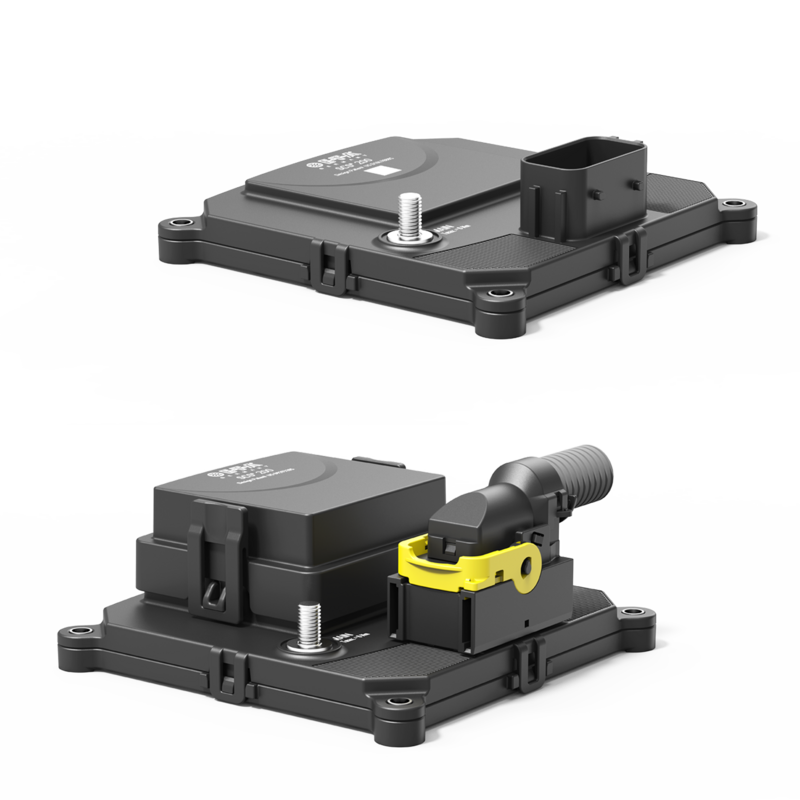

Type SCS200

159 mm


More intelligent and complex systems as well as the electrification of loads currently play a decisive role in the development of on-board electrical systems.

The SCS200 is the right answer to these requirements. It is an intelligent power distribution system, allowing decentralised control and monitoring of loads via the CAN bus. The design features a pcb-based power distribution in a compact IP66/67 enclosure.

SCS200 modules are plug-and-play solutions that allow you to reduce wiring time and save space. Comprehensive diagnostic capabilities (integral load protection, load current and voltage measurement, output status) and the integrated CAN connection of the SCS200 allow predictive maintenance and the implementation of load management.

Technical Data

Communication CAN 2.0B
SAE J1939
Rated current per channel 15 A / 10 A (SC 48 V)
25 A / 10 A (SC 24 V)
30 A / 10 A (SC 12 V und RC)
Number of channels 8
Voltage rating DC 12 V (SC)
DC 12 V / DC 24 V (RC)
DC 24 V (SC)
DC 48 V (SC)
Total current 90 A (SC 48 V)
120 A (RC)
120 A (SC 24 V)
150 A (SC 12 V)
Temperature range -40°C … +85°C
Terminal design GND: M6
Tyco AMP Leavy Seal 21-Pin
Certificates KBA E1 (ECE-R10)


  • Agricultural and forestry machinery
  • Bus: Transit and School
  • Construction machinery
  • Heavy truck
  • Specialty vehicles
