Type: High Power-D-Box®


max. ~ 531 mm

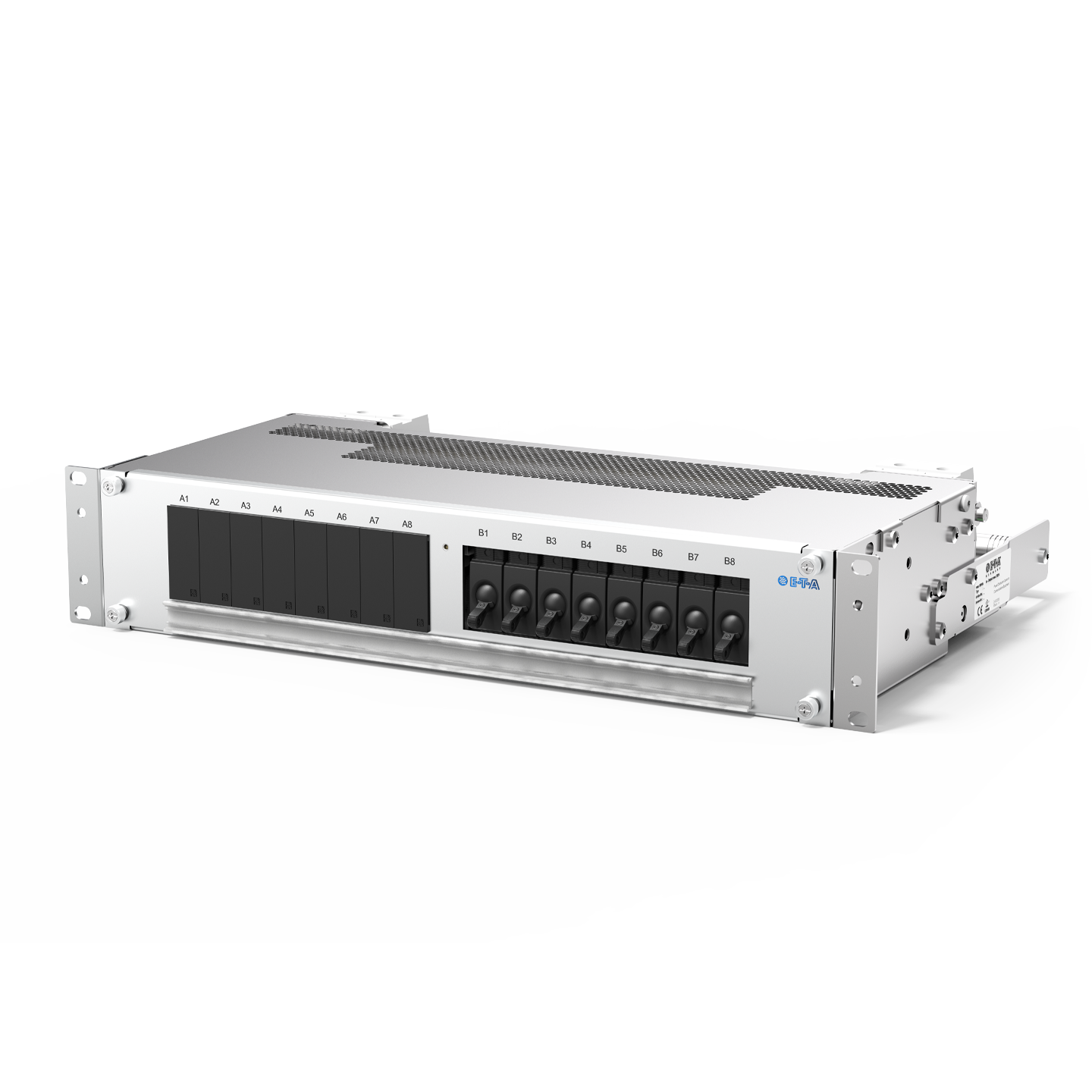

Typ High Power-D-Box® von E-T-A: Die Power-D-Box® ist ein kompaktes Stromverteilungssystem in 2 HE aus Aluminium.

The Power-D-Box® is a compact 2U power distribution system made of aluminium in an enclosure with anodised front plate. Protection of the loads is by means of hydraulic-magnetic circuit breakers.

Mounting method racks
Circuit breaker type hydraulic-magnetic
Dimensions height 2U (88.9 mm)
width 19 (482.6 mm)
width ETSI (531.4 mm)
Max. rated voltage DC -80 V
Number of channels 2 x 3 redundant
2 x 4 redundant
2 x 5 redundant
2 x 6 redundant
For circuit breaker type 8345
Supply redundant
Supply max. current rating 232 A
Supply terminal type 95 mm²
Screw terminals
Signalling Break contacts connected in parallel
Terminal type of auxiliary contacts 1 mm²
Operating temperature range -30 … +60 °C
Further technical data  are available upon request


Order number Description

blanking piece 8345 on X8345-D01


Cable clamp rail


Grounding connector incl. mounting material


  • Automation
  • Telecom & Datacom

Customer-specific power distribution
