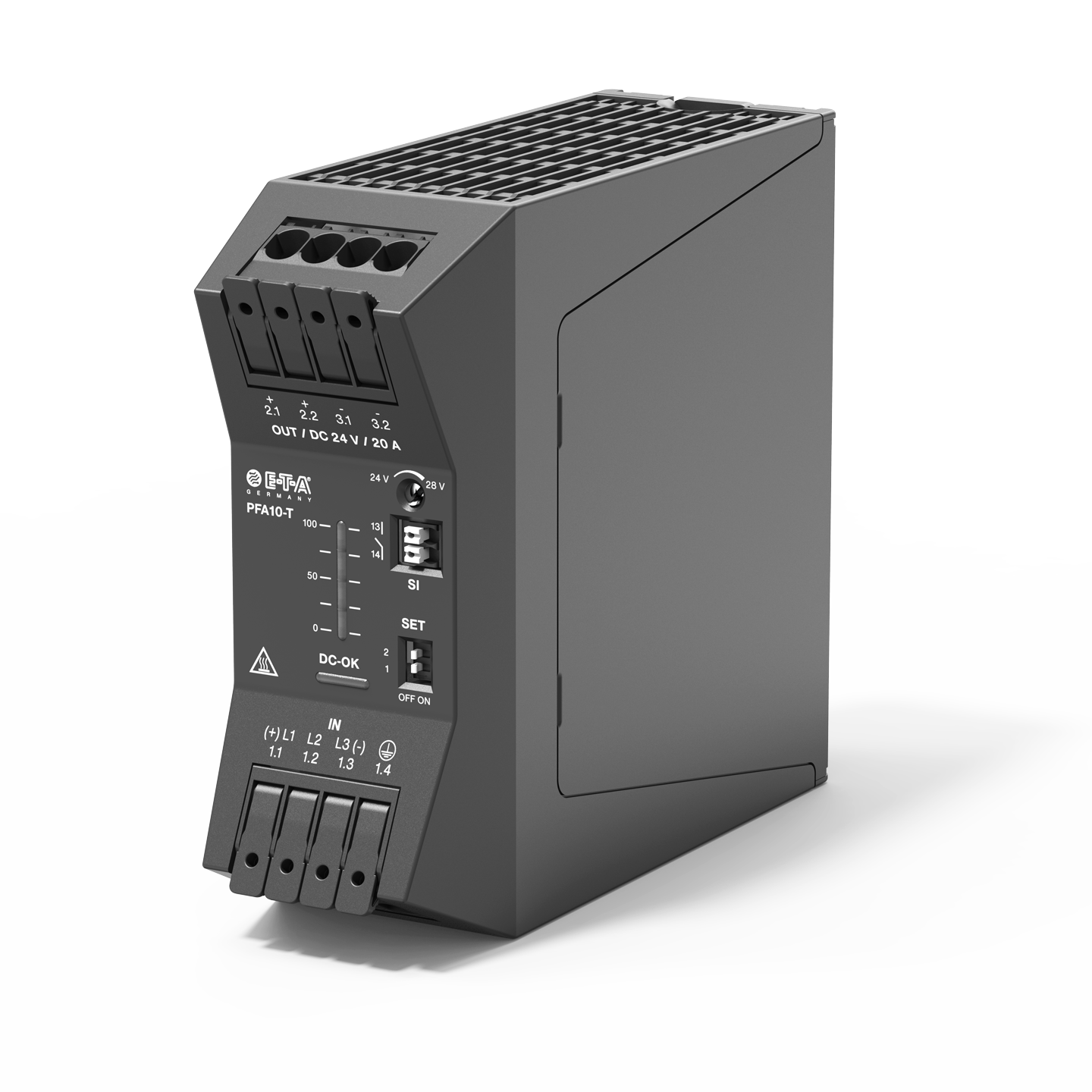

Type PFA10-T 20 A, DC 24 V

~ 52 mm

Description

The primary pulsed PFA10-T switch mode power supply unit is ideal for automation and mechanical engineering applications. The compact design allows space-saving integration in control cabinets with limited installation space. The housing with 25° inclined connections enables tool-free installation and quick replacement.

The three-phase AC input is also suitable for operation with DC voltage. With the DC 24 V output, an efficiency factor of max. 94.1 %, 240 W output power and 150 % power reserve for up to 5 seconds, the power supply unit fulfils all the requirements of dynamic industrial applications.

Technical Data

Input voltage range (V)	AC 320 V... AC 575 V DC 450 V… DC 815 V
Typical efficiency (%)	> 95%
Output voltage range	DC 24 V...DC 28 V
Temperature range	-40...+70 °C
Mounting method	rail mounting
Rated output voltage	DC 24 V
Rated output current	20 A
Rated input voltage	AC 400 V...AC 480 V
Operating conditions signalling	DC OK - Green LED - Potential-free auxiliary contact
Overload factor	150%
Terminal design	Push-in
Certificates	UL 61010-1, UL 61010-2-201, UL62368-1, CSA C22.2 No. 61010-1, CSA C22.2 No. 61010-2-201, CSA-C22.2 No. 62368-1, IEC/EN61010-1, IEC/EN61010-2-201, IEC/EN62368-1, REACH, RoHS, CE, UKCA
