Type High Power-D-Box MRU

482,6

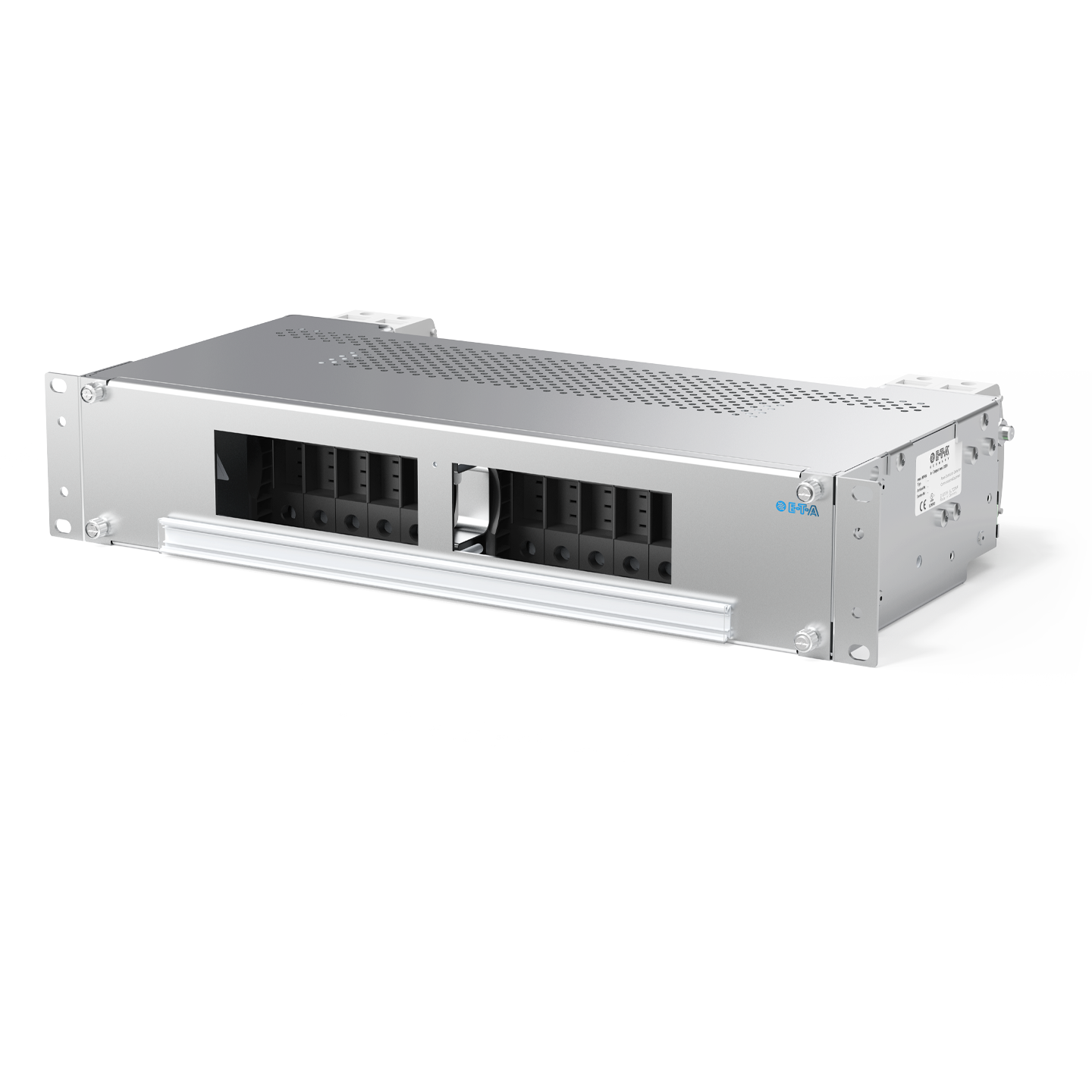

Modular High Power D-Box MRU with measuring modules

Description

The PDB-N-Dxx-RR-MRU High Power-D-Box® is a compact power distribution system with 2 height units (HU). Thanks to integrated measuring sensors, it can send measuring values such as current (I), voltage (U) and electrical power (P) to the MRU10 Monitoring & Reporting Unit.

The system thus provides the data basis for calculating KPIs to fulfil the Energy Efficiency Act (EnEfG). The redundantly designed system can be equipped with plug-in type 8345 hydraulic-magnetic circuit breakers.

The entire current routing and the group signalling are designed in a finger-safe metal housing. This prevents contact with live components. The loads and the power supply can be connected at the back via screw terminals.

Benefits:

Precise measurement data collection according to PUE category 2/3 for calculating relevant KPIs in accordance with the EnEfG
Efficient energy savings through targeted identification of powerintensive hardware
Transparent cost allocation: Electricity costs can be allocated to the polluter
Optimized resource planning: Easy analysis of whether current power consumption allows the use of additional hardware in the IT rack
Flexible data access: Show the values directly on site via the display or conveniently via remote request using integrated interface protocols

Technical Data

Mounting method	racks
Circuit breaker type	hydraulic-magnetic
Dimensions	width 19 (482.6 mm)
Max. rated voltage	DC -80 V
Number of channels	2 x 3 redundant 2 x 4 redundant 2 x 5 redundant 2 x 6 redundant
For circuit breaker type	8345
Supply	redundant
Supply max. current rating	232 A
Supply terminal type	95 mm² Screw terminals
Max. current rating of loads	125
Terminal type of loads	35 mm² Screw terminals
Signalling	Break contacts connected in parallel
Terminal type of auxiliary contacts	1.5 mm² screw terminals
Operating temperature range	-30 … +60 °C
Further technical data	Erhalten Sie auf Anfrage
Certificates	UL
